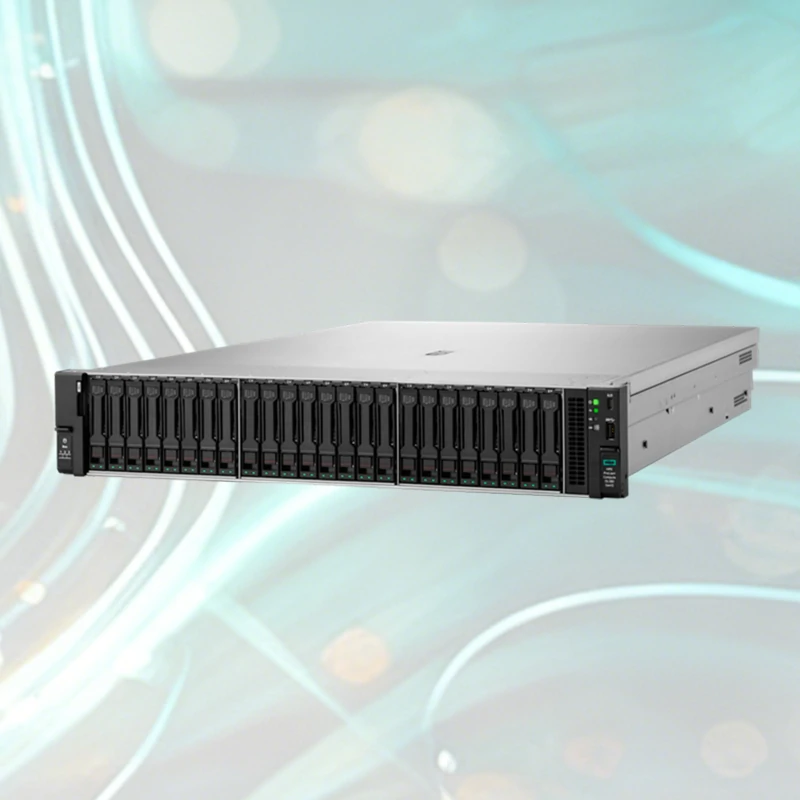

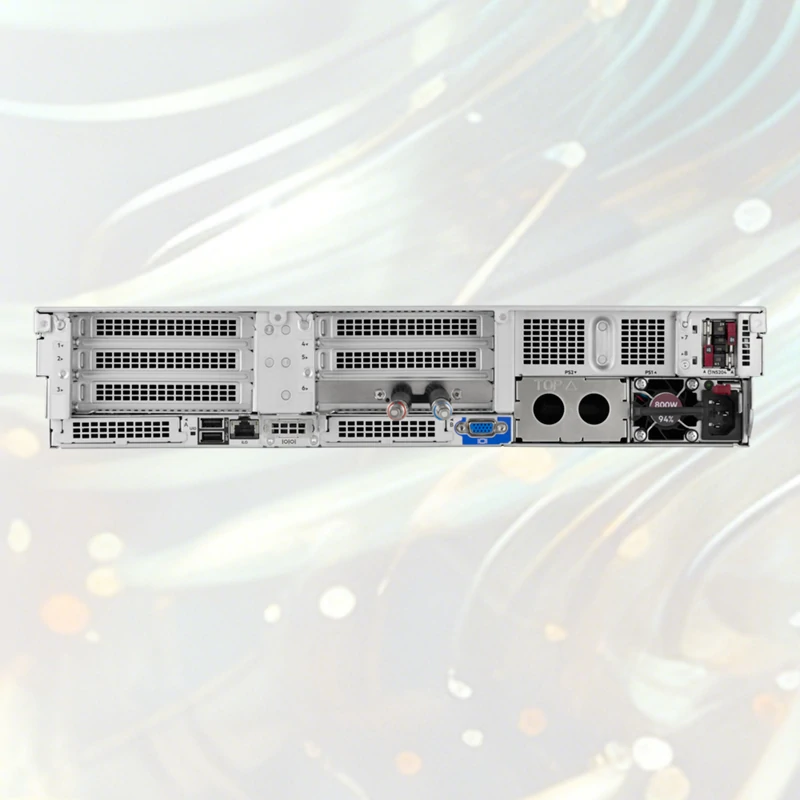

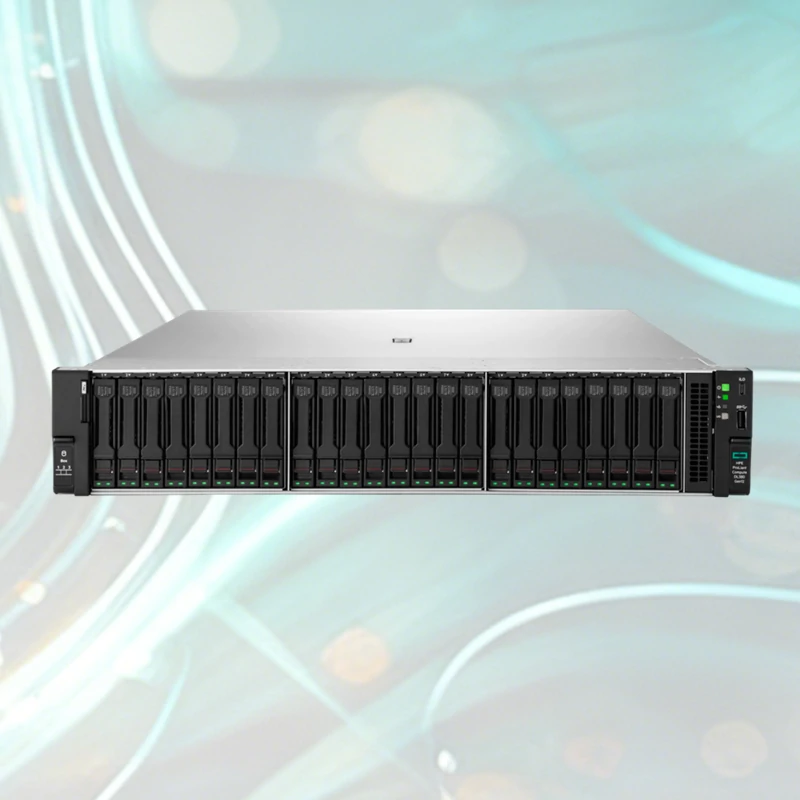

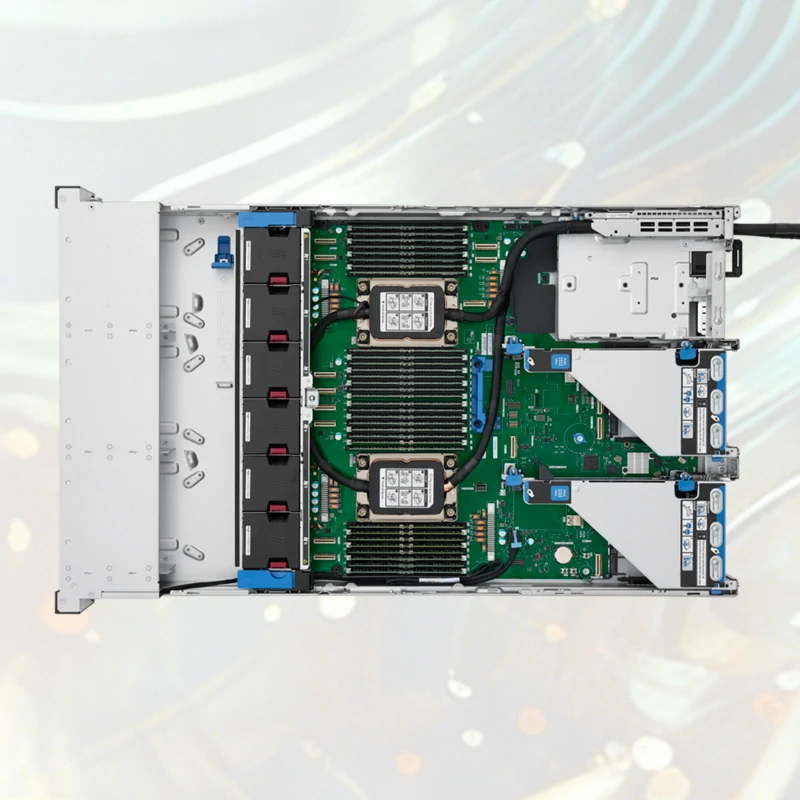

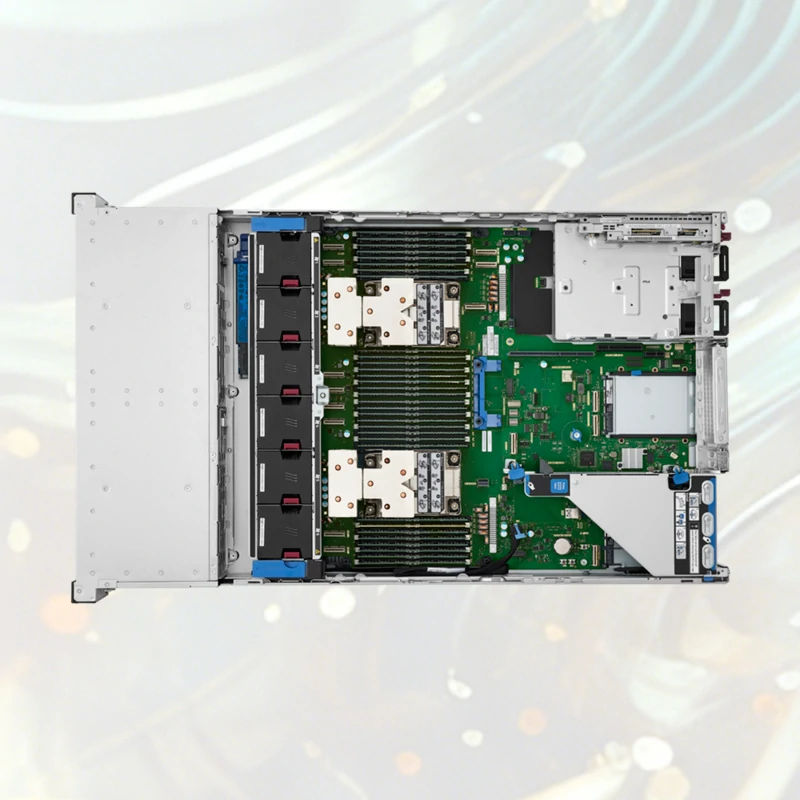

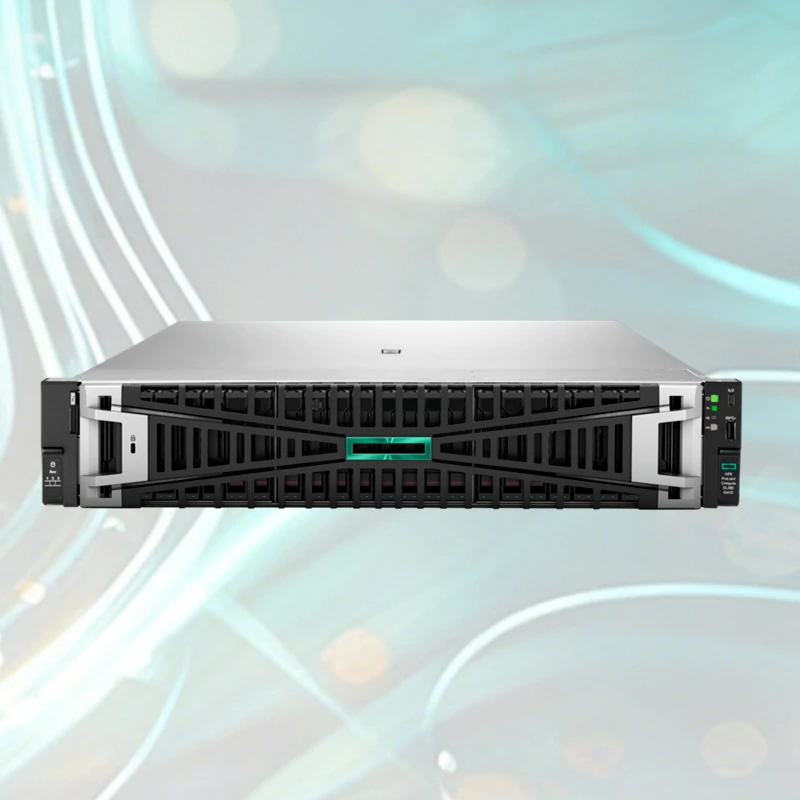

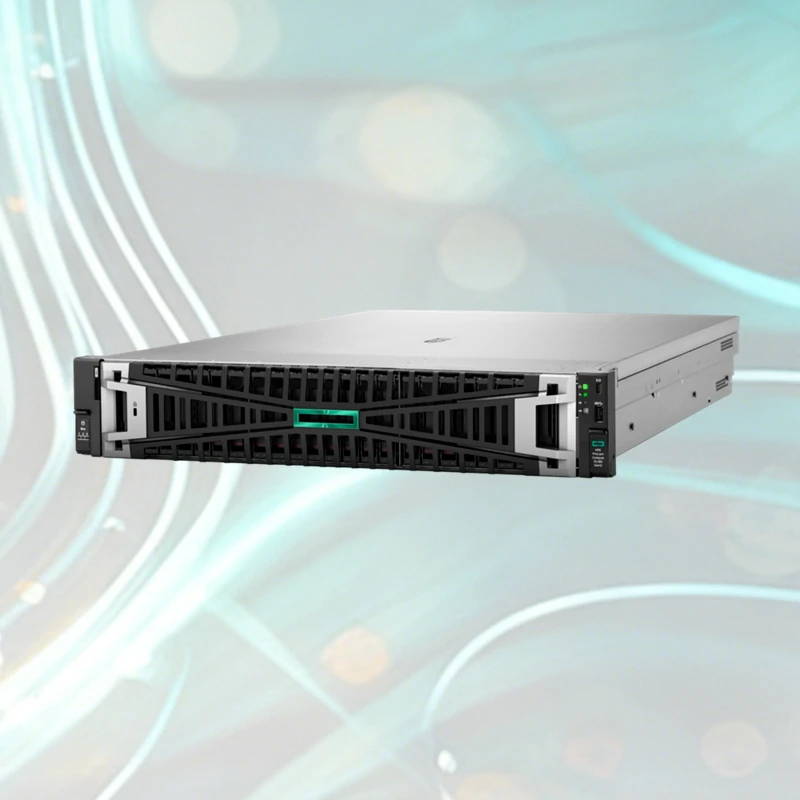

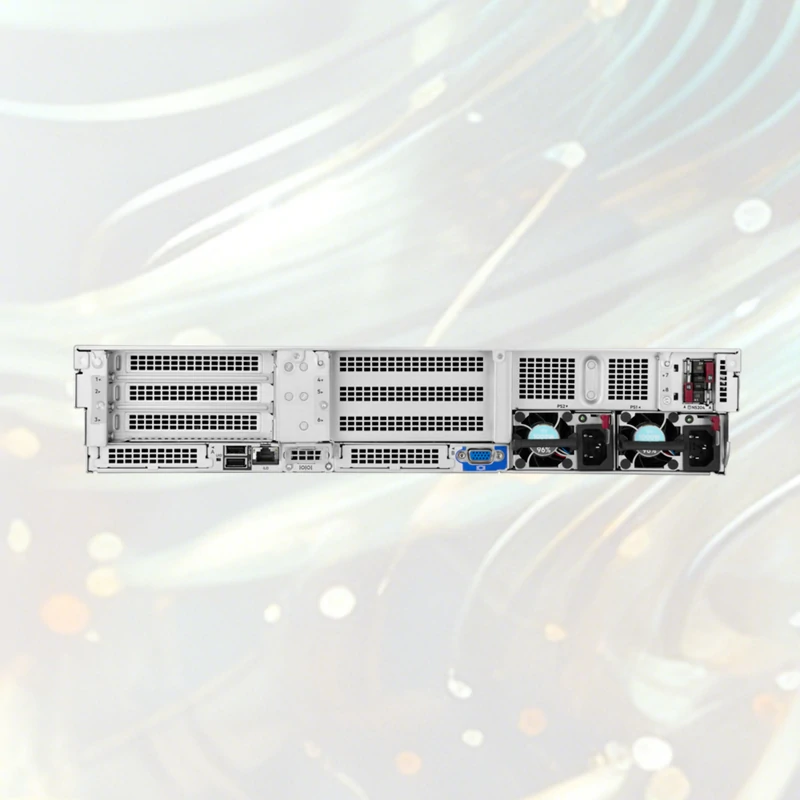

HPE ProLiant DL380 Gen12 Server (CTO)
| Qty | Product # | Product Description | Total (USD) |
| 1 | P73282-B21 | HPE ProLiant Compute DL380 Gen12 SFF NC Configure-to-order Server | $43,980.00 |
| 2 | P74573-B21 | Intel Xeon 6730P 2.5GHz 32-core 250W Processor for HPE | |
| 16 | P69728-B21 | HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit | |
| 1 | P75740-B21 | HPE ProLiant Compute DL3XX Gen12 8SFF x1 U.3 Tri-Mode Drive Cage Kit | |
| 1 | P26259-B21 | Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE | |
| 1 | P01366-B21 | HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit | |
| 1 | P48918-B21 | HPE ProLiant DL360 Gen11 Storage Controller Enablement Cable Kit | |
| 1 | P47781-B21 | HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller | |
| 1 | P51181-B21 | Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE | |
| 2 | 455883-B21 | HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver | |
| 2 | P03178-B21 | HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit | |
| 2 | P78131-B21 | HPE C13 – GB1002 250V 10Amp 1.83m FIO Power Cord | |
| 1 | BD505A | HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features | |
| 1 | P72203-B21 | HPE ProLiant Compute DL3XX/ML350 Gen12 CPU1 to Rear OCP SlotB x8 Cable Kit | |
| 1 | P76452-B21 | HPE ProLiant Compute DL380 Gen12 8SFF SFF x4 UMB OROC Box 1/2 Cable Kit | |
| 1 | P48820-B21 | HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit | |
| 1 | P07818-B21 | HPE DDR4 DIMM Blank Kit | |
| 1 | P52341-B21 | HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit | |
| 1 | P73325-B21 | HPE ProLiant Compute Localization FIO Kit | |
| 2 | P74792-B21 | HPE ProLiant Compute DL380 Gen12 Performance Heat Sink Kit | |
| 1 | P79552-B21 | HPE ProLiant Compute 30C System Inlet Ambient Operating Temperature Configuration Tracking |
Computing Unit
Equipped with 2 Intel® Xeon® 6 processors, each supporting up to 144 cores. It innovatively adopts a hybrid architecture of Performance Cores (P-cores) and Efficiency Cores (E-cores), achieving a 40% improvement in general computing performance while optimizing energy efficiency, providing powerful support for complex computing tasks.
Storage Unit
Features up to 36 EDSFF E3.S NVMe drive bays and supports front-facing hot-swappable M.2 boot devices. This not only enables sub-second response for terabyte-level data but also significantly improves device maintenance efficiency, ensuring efficient and stable data storage.
Expansion Unit
Comes with 6 PCIe Gen5 x16 slots and 2 OCP 3.0 slots, doubling the data transfer rate compared to previous generations. Its robust expandability supports the deployment of 8 single-width or 3 double-width GPUs, easily meeting high-load application requirements such as AI computing and graphics processing.
Performance Parameters and Technological Breakthroughs
1. Computing and Memory Performance
Processors: The Intel® Xeon® 6 series supports 16 DIMM channels per processor, with a total of up to 288 cores in a dual-socket configuration. Combined with 48MB of L3 cache, it easily handles multi-threaded workloads such as virtualization and big data analytics. The E-core version delivers a 41% improvement in performance per watt, significantly reducing the PUE (Power Usage Effectiveness) of data centers.
Memory: 32 DIMM slots support up to 8TB of DDR5 memory with a speed of 6400 MT/s. Through HPE Smart Memory Technology, it implements RAS (Reliability, Availability, Serviceability) features such as Advanced ECC, Online Spare, and Mirroring, improving memory fault tolerance by 30% compared to Gen11.
2. Storage and I/O Bandwidth
The widespread adoption of the PCIe Gen5 bus reduces I/O latency to the microsecond level. In AI inference scenarios, the DL380 Gen12 equipped with NVIDIA H200 NVL GPUs ranked first in all 10 MLCommons benchmark tests, with LLM (Large Language Model) response speed 2.5 times faster than Gen11.
3. Energy Efficiency and Sustainability
Management System and Security Protection
1. Intelligent Operation and Maintenance Tools
HPE iLO 7: The redesigned GUI supports real-time performance monitoring and BIOS fine-tuning recommendations, with cross-platform integration via the Redfish API. The new “Secure Enclave” technology uses a dedicated processor to build a trusted execution environment, enabling remote server management even when offline.
HPE OneView: Converts physical infrastructure into programmable resources through the “Global View” feature. Automated firmware updates and fault diagnosis reduce unplanned downtime by 4.8 hours per year. Its multi-vendor compatibility seamlessly integrates with existing data center workflows.
2. Full-Lifecycle Security
Hardware Foundation: Silicon Root of Trust technology ensures the firmware boot process is tamper-proof, while the embedded TPM 2.0 module encrypts and stores sensitive data.
Runtime Protection: Intel SGX and TDX technologies create isolated execution environments to prevent leakage of AI model training data.
Decommissioning Assurance: HPE iLO 7 supports hard drive data erasure and firmware reset, complying with ISO 27001 data destruction standards.
Other spare parts
CPU
P74503-B21 Intel Xeon 6505P 2.2GHz 12-core 150W Processor for HPE
P74504-B21 Intel Xeon 6507P 3.5GHz 8-core 150W Processor for HPE
P74506-B21 Intel Xeon 6515P 2.3GHz 16-core 150W Processor for HPE
P74507-B21 Intel Xeon 6517P 3.2GHz 16-core 190W Processor for HPE
P74509-B21 Intel Xeon 6724P 3.6GHz 16-core 210W Processor for HPE
P74570-B21 Intel Xeon 6527P 3.0GHz 24-core 255W Processor for HPE
P74571-B21 Intel Xeon 6530P 2.3GHz 32-core 225W Processor for HPE
P74573-B21 Intel Xeon 6730P 2.5GHz 32-core 250W Processor for HPE
P81591-B21 Intel Xeon 6745P 3.1GHz 32-core 300W Processor for HPE
P71118-B21 Intel Xeon 6731E 2.2GHz 96-core 250W Processor for HPE
P71120-B21 Intel Xeon 6746E 2.0GHz 112-core 250W Processor for HPE
P71117-B21 Intel Xeon 6710E 2.4GHz 64-core 205W Processor for HPE
P71119-B21 Intel Xeon 6740E 2.4GHz 96-core 250W Processor for HPE
P71121-B21 Intel Xeon 6756E 1.8GHz 128-core 225W Processor for HPE
P71122-B21 Intel Xeon 6766E 1.9GHz 144-core 250W Processor for HPE
P71124-B21 Intel Xeon 6780E 2.2GHz 144-core 330W Processor for HPE
P73829-B21 Intel Xeon 6740P 2.1GHz 48-core 270W Processor for HPE
P73831-B21 Intel Xeon 6747P 2.7GHz 48-core 330W Processor for HPE
P73832-B21 Intel Xeon 6760P 2.2GHz 64-core 330W Processor for HPE
P73834-B21 Intel Xeon 6767P 2.4GHz 64-core 350W Processor for HPE
P73835-B21 Intel Xeon 6768P 2.4GHz 64-core 330W Processor for HPE
P73837-B21 Intel Xeon 6787P 2.0GHz 86-core 350W Processor for HPE
P73838-B21 Intel Xeon 6788P 2.0GHz 86-core 350W Processor for HPE
P74508-B21 Intel Xeon 6714P 4.0GHz 8-core 165W Processor for HPE
P74568-B21 Intel Xeon 6520P 2.4GHz 24-core 210W Processor for HPE
P74572-B21 Intel Xeon 6728P 2.7GHz 24-core 210W Processor for HPE
P74575-B21 Intel Xeon 6736P 2.0GHz 36-core 205W Processor for HPE
P74576-B21 Intel Xeon 6737P 2.9GHz 32-core 270W Processor for HPE
P74577-B21 Intel Xeon 6738P 2.9GHz 32-core 270W Processor for HPE
P74579-B21 Intel Xeon 6748P 2.5GHz 48-core 300W Processor for HPE
Memory
P69726-B21 HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit
P69727-B21 HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit
P69728-B21 HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit
P69729-B21 HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit
P69730-B21 HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit
P73447-B21 HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit
Pcie Card
R8M41A NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE
S2A69A NVIDIA Ethernet 10/25Gb 2-port SFP28 NVMe-oF Crypto Adapter for HPE
P08443-B21 Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
P08458-B21 Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE
P25960-B21 Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE
P26253-B21 Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
P26259-B21 Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE
P26262-B21 Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
P26264-B21 Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE
P42044-B21 Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
P51178-B21 Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE
P21109-B21 Xilinx X2522-25G-PLUS Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
P21112-B21 Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE
P73111-B21 Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 Adapter for HPE
Transceiver
453154-B21 HPE BladeSystem CClass Virtual Connect 1G SFP RJ45 Transceiver
P49764-B21 HPE InfiniBand NDR/Ethernet 1x400Gb OSFP Multi-mode 50m HCA-side Transceiver
P79829-B21 HPE InfiniBand XDR/Ethernet 400GbE QSFP112 1-port Single-mode 500m Transceiver
P82314-B21 HPE InfiniBand XDR/Ethernet 800GbE OSFP 1-port Single-mode 500m HCA-side Transceiver
Q8J73A HPE 100GbE QSFP28 500m 1310mm PSM4 Transceiver
Q9S71A HPE 100GbE QSFP28 to QSFP28 5m Active Optical Cable
453151-B21 HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver
455883-B21 HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver
455886-B21 HPE BladeSystem c-Class 10Gb SFP+ LR Transceiver
845398-B21 HPE 25Gb SFP28 SR 100m Transceiver
845966-B21 HPE 100Gb QSFP28 MPO SR4 100m Transceiver
845970-B21 HPE QSFP28 to SFP28 Adapter
845972-B21 HPE 100Gb QSFP28 Bidirectional Transceiver
P65334-B21 HPE InfiniBand NDR/Ethernet 400G QSFP112 MPO12 850nm Multi-mode 50m APC Transceiver
P86377-B21 HPE InfiniBand/Ethernet 2x400GbE OSFP 2-port Multi-mode 50m Flat-Top Transceiver
Q2F19A HPE 100GbE QSFP28 SR4 100m Transceiver
HBA Card
R2E08A HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter
R2E09A HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter
R7N87A HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter
R7N86A HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter
S4S01A HPE SN1620E 32Gb 2p FC SecureHBA
S4T09A HPE SN1720E 64Gb 2p FC SecureHBA
Questions & Answers
Q 1: How can I trust that your products are of good quality?
A1: We guarantee that all our products are original and authentic, and provide complete product information and test reports.
Q2: When can I get a quote?
A2: We usually give you a quote within 24 hours after receiving your inquiry. You can also use the instant messaging software Whatsapp or WeChat or contact us via email [email protected].
Q3: Why choose you?
A3: We are an authorized distributor in China, and we enjoy a good reputation among customers for our excellent quality, reasonable price and excellent service.
Q 4: What are your payment terms?
A4: We accept T/T remittance (USD or RMB), prepay 30% to start stocking, and you can go to the warehouse to inspect the goods and pay the balance after the goods are ready.
Q5: What is the minimum order quantity?
A5: The minimum quantity is 1.
Packaging & Shipping
1. Goods in stock can be shipped the next day after placing an order.
2. Customized goods need to be produced by the factory and will be shipped about 20-35 working days after placing an order.
We can provide professional freight forwarding agents to ensure product quality and cargo safety. Of course, you can also pick up the goods directly at the warehouse.
